2mm Platform- Red
XP Multi-Unit Abutments (MU.XP)
- Available for removable and screw-retained prosthesis (i.e. crowns, bridges and bar)
- 1.5 degree conical connection for a bacteria-tight connection and bone and papilla preservation
- Angled abutments require a prosthetic screw (not included)
- Solid abutment with separate occlusal retaining screw
- Photogrammetry compatible
- Variable:
Available in various gingival heights:
(GH) 1.0 - 2.0 - 3.0 - 4.0 - 5.0
Available in various angulations:
0º - 20º - 30º - Only splinted and not to be used for single-tooth restoration
- Torque recommendations: 20 Ncm (2 mm Platform) /
10 Ncm max on connection screw
| Picture | Item # | Description | Angulation | Gingival Height (MM) | |
|---|---|---|---|---|---|
|

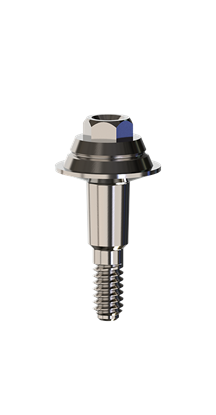

MU.XP 400010/2 |
4.0 x 1.0 mm 0° Multi-Unit Abutment with 2mm Post |
0° | 1.0 | |
|

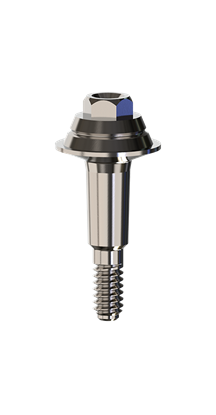

MU.XP 400020/2 |
4.0 x 2.0 mm 0° Multi-Unit Abutment with 2mm Post |
0° | 2.0 | |
|

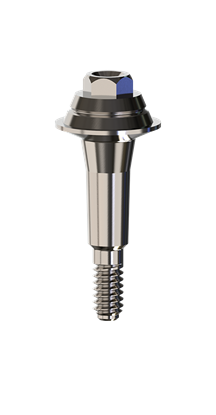

MU.XP 400030/2 |
4.0 x 3.0 mm 0° Multi-Unit Abutment with 2mm Post |
0° | 3.0 | |
|

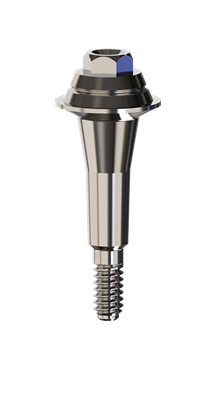

MU.XP 400040/2 |
4.0 x 4.0 mm 0° Multi-Unit Abutment with 2mm Post |
0° | 3.0 | |
|

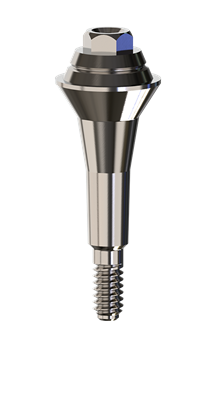

MU.XP 400050/2 |
4.0 x 5.0 mm 0° Multi-Unit Abutment with 2mm Post |
0° | 5.0 | |
|

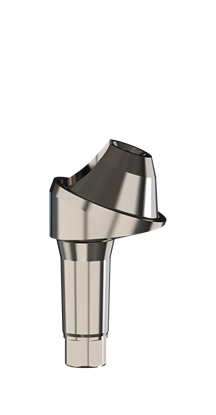

MU.XP 402020/2 |
4.0 x 2.0 mm 20° Multi-Unit Abutment with 2mm Post |
20° | 2.0 | |
|
MU.XP 402030/2 |
4.0 x 3.0 mm 20° Multi-Unit Abutment with 2mm Post |
20° | 3.0 | |
|
MU.XP 402040/2 |
4.0 x 4.0 mm 20° Multi-Unit Abutment with 2mm Post |
20° | 4.0 | |
|
MU.XP 402050/2 |
4.0 x 5.0 mm 20° Multi-Unit Abutment with 2mm Post |
20° | 5.0 | |
|
MU.XP 403020/2 |
4.0 x 2.0 mm 30º Multi-Unit Abutment with 2mm Post |
30° | 2.0 | |
|
MU.XP 403030/2 |
4.0 x 3.0 mm 30º Multi-Unit Abutment with 2mm Post |
30° | 3.0 | |
|

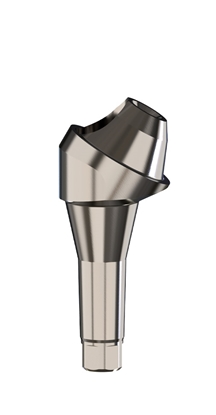

MU.XP 403040/2 |
4.0 x 4.0 mm 30º Multi-Unit Abutment with 2 mm Post |
30° | 4.0 | |
|

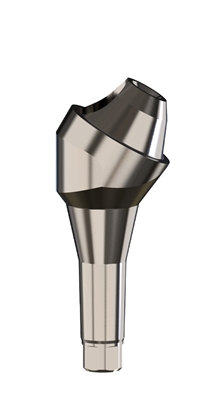

MU.XP 403050/2 |
4.0 x 5.0 mm 30º Multi-Unit Abutment with 2 mm Post |
30° | 5.0 | |
|

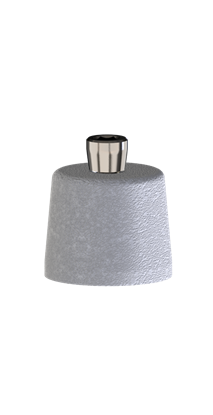

MU.XP_VK |
K3Pro XP Multi-unit Closure Cap, Screw Connection: Torx (UG) - Integrated Screw |
|||
|

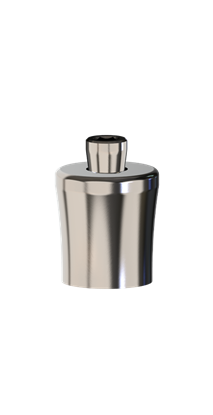

MU.XP_GV5.5/Set |
XP Multi-Unit Gingiva Former Cap Diameter 5.5 with Integrated Screw |
|||
|

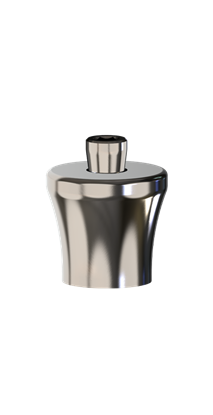

MU.XP_GV6.5/Set |
XP Multi-Unit Gingiva Former Cap Diameter 6.5 with Integrated Screw |
|||
|

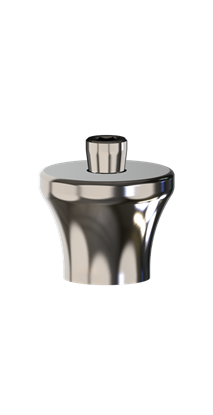

MU.XP_GV7.5/Set |
XP Multi-Unit Gingiva Former Cap Diameter 7.5 with Integrated Screw |
|||
|

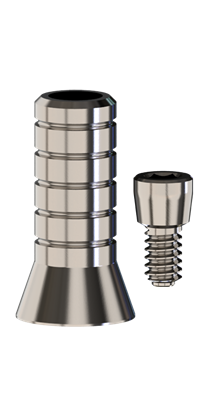

MU.XP_KT/Set |
XP Multi-Unit Cap Titanium Includes Secondary Screw |
|||
|

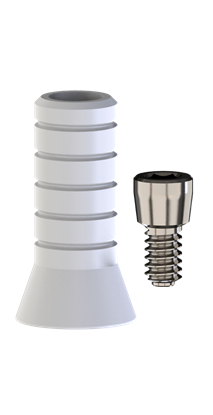

MU.XP_KP/SET |
K3Pro XP Multi-Unit Cap POM - secondary screw included |
|||
|

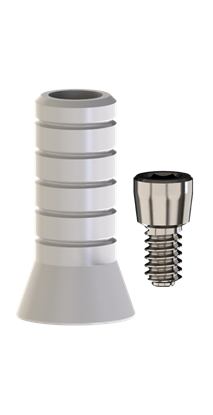

MU.XP_KPK/Set |
XP Multi-Unit Cap Peek Incl. Secondary Screw |
