3mm Platform- Yellow
Ti-Base Abutments (KSA)
- Abutment for the fabrication of an individual cemented or screw retained Zirconium prostheses with emergence profile using CAD-CAM techniques
- Scan caps and scan bodies available for a digitized implant positioning and abutment placement
- Anti-rotational scan cap assured by a notch at the base of the abutment
- Circular platform of the Abutment fullfills the highest esthetic demands
- Abutment cylinder height ensures a good cemented connection of the milled Zirconium structure
- Available in different heights and angulations
- 1.5° Conical Connection for stability and bacterial seal
- Variable:
Available in various gingival heights:
(GH) 0.5 - 1.5 - 2.5 mm
Available in various angulations
0º - 10º - 20º - Torque Recommendations: 25 - 30 Ncm (3mm Platform)
| Picture | Item # | Description | Angulation | Gingival Height (MM) | |
|---|---|---|---|---|---|
|

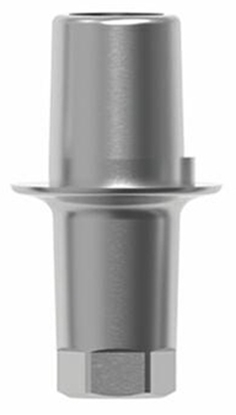

KSA500005.H/3Pr |
5.0 x 0.5mm 0° Glue/Scan Abutment with 3mm Post Hex |
0° | 0.5 | |
|

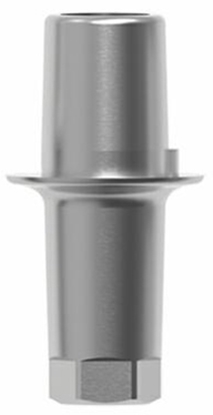

KSA500015.H/3Pr |
5.0 x 1.5mm 0° Glue/Scan Abutment with 3mm Post Hex |
0° | 1.5 | |
|

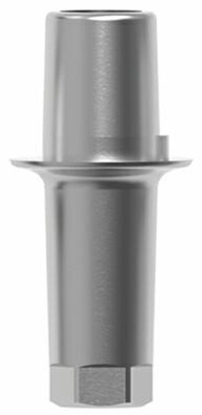

KSA500025.H/3Pr |
5.0 x 2.5mm 0° Glue/Scan Abutment with 3mm Post Hex |
0° | 2.5 | |
|

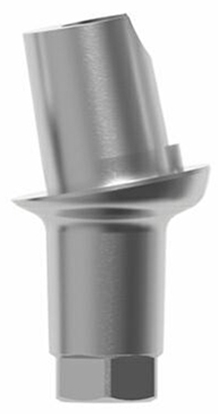

KSA501005.H/3Pr |
5.0 x 0.5mm 10° Glue/Scan Abutment with 3mm Post Hex |
10° | 0.5 | |
|

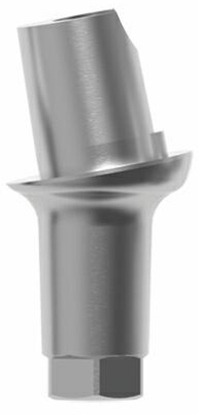

KSA501015.H/3Pr |
5.0 x 1.5mm 10° Glue/Scan Abutment with 3mm Post Hex |
10° | 1.5 | |
|

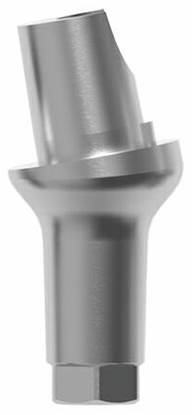

KSA501025.H/3Pr |
5.0 x 2.5mm 10° Glue/Scan Abutment with 3mm Post Hex |
10° | 2.5 |
