Short Platform - Blue
Cerec (CS)
- Abutment for chairside fabrication of cemented or screw retained ceramic
prostheses using CEREC technology - Scan bodies for Bluecam S and Omnicam S available for a digitized implant positioning and abutment placement
- Anti-rotational scan body assured by a notch at the base of the abutment
- Circular platform of the abutment fullfills the highest esthetic demands
- Abutment cylinder height ensures a good cemented connection of the milled Zirconium structure
- 1.5° conical connection for stability and bacterial seal
- Variable:
Available in various gingival heights
(GH) 0.5 - 1.5 mm
Available in various diameters:
4.0 mm - 4.5 mm - Torque recommendations: 25 - 30 Ncm (Short Platform)
.jpg)
| Picture | Item # | Description | Gingival Height (MM) | |
|---|---|---|---|---|
|

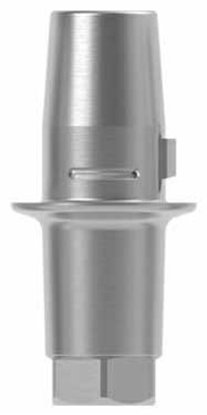

CS400005.H/3Pro |
0.5mm Cerec Mill Abutment with 3mm Post |
0.5 | |
|

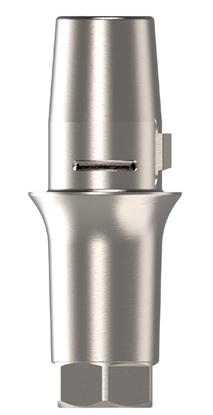

CS400015.H/3Pro |
1.5mm Cerec Mill Abutment with 3mm Post |
1.5 | |
|

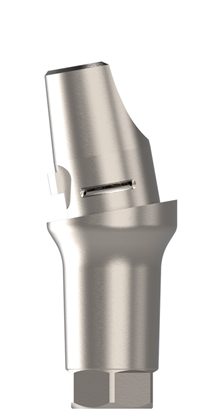

CS401005.H/3Pro |
0.5mm x 10° Cerec Mill Abutment with 3mm Post |
0.5 | |
|
CS401015.H/3Pro |
1.5mm x 10º Cerec Mill Abutment with 3mm Post |
1.5 | |
|
|
CS402005.H/3Pro |
0.5mm x 20º Cerec Mill Abutment with 3mm Post |
0.5 | |
|

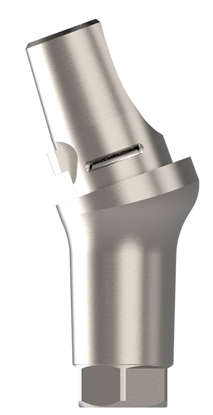

CS402015.H/3Pro |
1.5mm x 20° Cerec Mill Abutment with 3mm Post |
1.5 | |
|
109007 |
Scanbodies for Bluecam S |
||
|
109009 |
Scanbodies for Omnicam S |
||
|

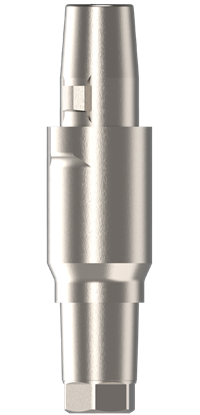

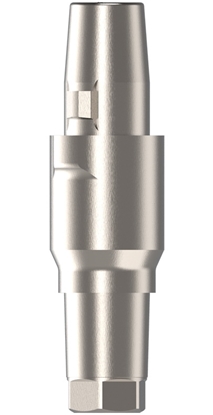

CS_SP3 |
K3Pro Cerec Compatible Scan Post with 3mm Platform |
0.5 | |
|

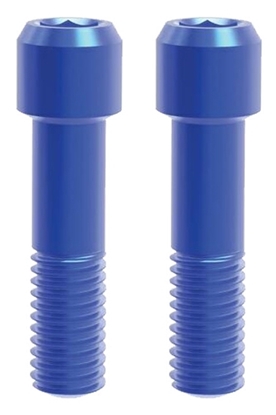

AS.K3Pro_S1.6/Set |
K3Pro Screw for Short implants w/ 3mm Well, Set of 2 |
||
|

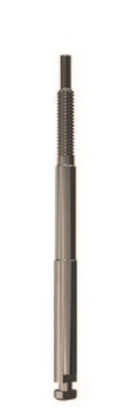

AAA.WS_K3Pro/3 |
Abutment Removal tool for K3Pro 3 mm well for contra angle |
