2mm Platform- Red
Emergence/Horizontal Abutments (EAZ)
- This abutment is ideal for screw-retained crowns as it avoids the occlusal access hole
- Horizontal lingual set screw fixes the crown to the abutment
- Abutment requires a horizontal lingual set screw and screw ring (not included)
- 30° abutments are to be used in splint restorations only, do not use in single tooth restorations
- Variable:
Available in various gingival heights:
(GH) 0.5 - 1.5 mm
Available in various angulations:
0º - 10º - 20º - 30º - Torque Recommendations: 15 - 20 Ncm (2 mm Platform)
| Picture | Item # | Description | Angulation | Gingival Height (MM) | |
|---|---|---|---|---|---|
|
EAZ_TV400005.H/ |
4.0 x 0.5mm Gingival Height 0° Emergence Horizontal Abutment 2mm Post Hex |
0° | 0.5 | |
|
EAZ_TV400015.H/ |
4.0 x 1.5mm Gingival Height 0° Emergence Horizontal Abutment 2mm Post Hex |
0° | 1.5 | |
|
EAZ_TV401005.H/ |
4.0 x 0.5mm Gingival Height 10° Emergence Horizontal Abutment 2mm Post Hex |
10° | 0.5 | |
|
EAZ_TV401015.H/ |
4.0 x 1.5mm Gingival Height 10° Emergence Horizontal Abutment 2mm Post Hex |
10° | 1.5 | |
|
EAZ_TV402005.H/ |
4.0 x 0.5mm Gingival Height 20° Emergence Horizontal Abutment 2mm Post Hex |
20° | 0.5 | |
|

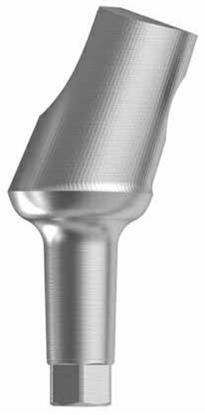

EAZ_TV402015.H/ |
4.0 x 1.5mm Gingival Height 20° Emergence Horizontal Abutment 2mm Post Hex |
20° | 1.5 | |
|

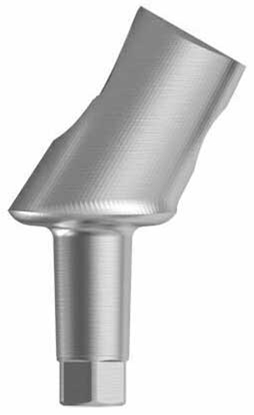

EAZ_TV403005.H/ |
4.0 x 0.5mm Gingival Height 30° Emergence Horizontal Abutment 2mm Post Hex |
30° | 0.5 | |
|

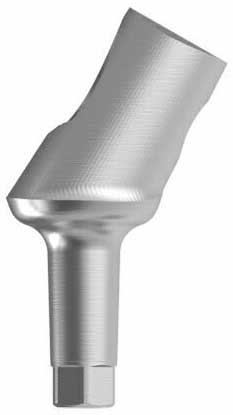

EAZ_TV403015.H/ |
4.0 x 1.5mm Gingival Height 30° Emergence Horizontal Abutment 2mm Post Hex |
30° | 1.5 | |
|
EAZ_TS1.4 |
Screw for Emergence EAZ Abutments |
|||
|
EAZ_SK1.4/Cast |
Screw ring Cast for Emergence EAZ Abutments |
|||
|
EAZ_SK1.4/POM |
Screw ring POM for Emergence EAZ Abutments |
|||
|
ETS.K3Pro/2.Set |
K3 Pro Screw 2mm, Set of 2 |
