2mm Platform- Red
Multi-Unit Abutments (MUA)
- Available for removable and screw-retained prosthesis (i.e. crowns, bridges and bar)
- 1.5 degree conical connection for a bacteria-tight connection and bone and papilla preservation
- Angled abutments require a prosthetic screw (not included)
- Solid abutment with separate occlusal retaining screw
- Photogrammetry compatible
- Variable:
Available in various gingival heights:
(GH) 1.0 - 2.0 - 3.0 - 4.0 - 5.0
Available in various angulations:
0º - 20º - Only splinted and not to be used for single-tooth restoration
- Torque recommendations: 20 Ncm (2 mm Platform) /
10 Ncm max on connection screw
| Picture | Item # | Description | Angulation | Gingival Height (MM) | |
|---|---|---|---|---|---|
|

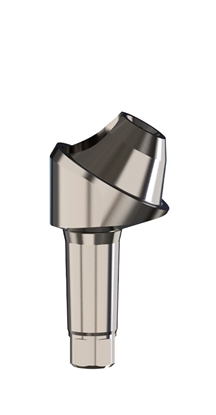

MU.XP 402030/2 |
4.0 x 3.0 mm 20° Multiunit Abutment with 2mm Post |
20° | 3.0 | |
|

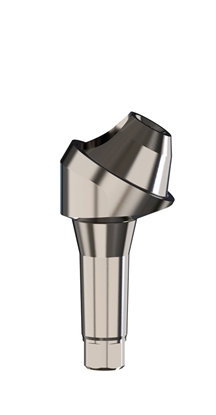

MU.XP 402040/2 |
4.0 x 4.0 mm 20° Multiunit Abutment with 2mm Post |
20° | 4.0 | |
|
MU.XP 402050/2 |
4.0 x 5.0 mm 20° Multiunit Abutment with 2mm Post |
20° | 5.0 | |
|
MU.XP_OT/Set |
XP Multiunit OT Transfer Cap Included Fixation Screw |
|||
|

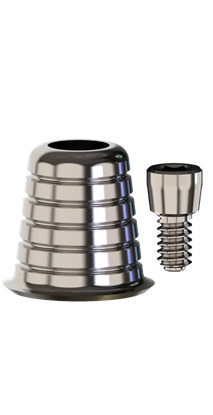

MU.XP_KT/Set |
XP Multiunit Cap Titanium Includes Secondary Screw |
|||
|
MU.XP_KPK/Set |
XP Multiunit Cap Peek Incl. Secondary Screw |
