3mm Platform-Yellow

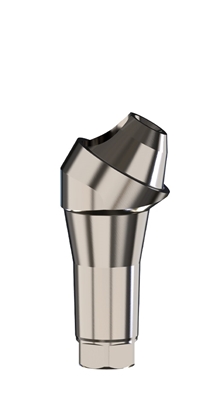

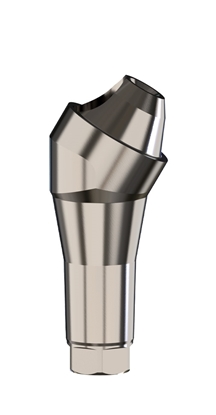

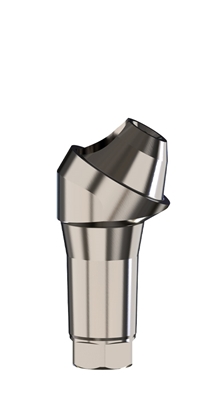

Multi-Unit Abutments (MUA)
- Available for removable and screw-retained prosthesis (i.e. crowns, bridges and bar)
- 1.5 degree conical connection for a bacteria-tight connection and bone and papilla preservation
- Angled abutments require a prosthetic screw (not included)
- Solid abutment with separate occlusal retaining screw
- Photogrammetry compatible
- Variable:
Available in various gingival heights:
(GH) 1.0 - 2.0 - 3.0 - 4.0 - 5.0
Available in various angulations:
0º - 20º - Only splinted and not to be used for single-tooth restoration
- Torque recommendations: 30 Ncm (3 mm Platform) /
10 Ncm max on connection screw
| Picture | Item # | Description | |
|---|---|---|---|
|
MU.XP_KPK/Set |
XP Multiunit Cap Peek Incl. Secondary Screw |
|
|
MU.XP_GV5.5/Set |
XP Multiunit Gingiva Former Cap Diameter 5.5 with Integrated Screw |
|
|
MU.XP_GV6.5/Set |
XP Multiunit Gingiva Former Cap Diameter 6.5 with Integrated Screw |
|
|
MU.XP_GV7.5/Set |
XP Multiunit Gingiva Former Cap Diameter 7.5 with Integrated Screw |
|
|
MU.XP_EIR |
XP Multiunit Insertion Tool Ratchet Connection |
|
|
MU.XP_KIT.K3 |
XP Multiunit Ball/Torx Instrument Contra Angle Connection |
