2mm Platform- Red

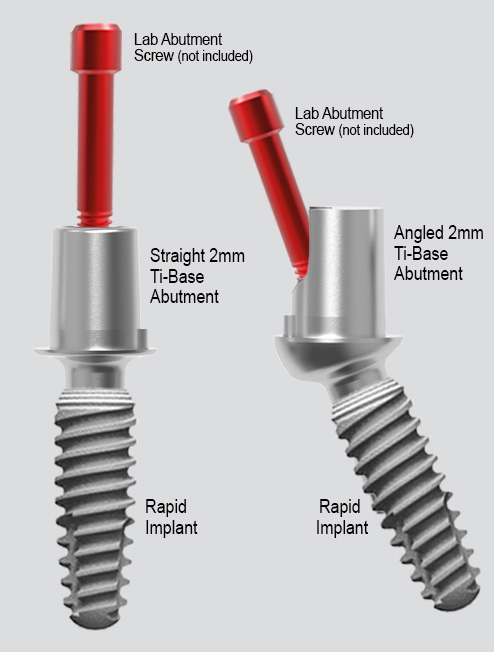

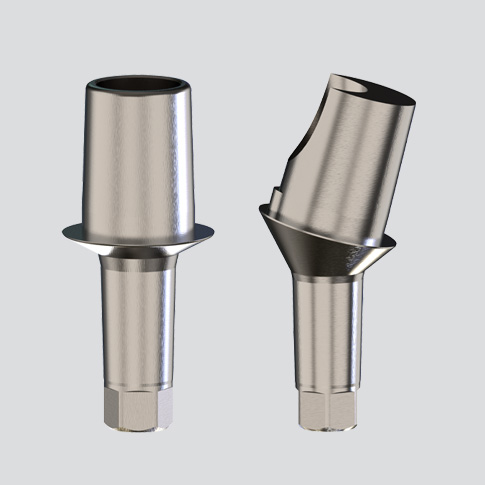

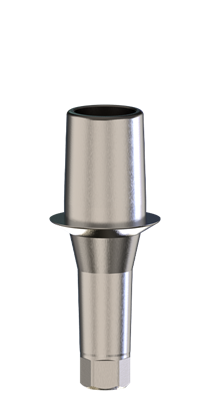

 Ti-Base Abutments (KSA)

  • Abutment for the fabrication of an individual cemented or screw retained Zirconium prostheses with emergence profile using CAD-CAM techniques
  • Scan caps and scan bodies available for a digitized implant positioning and abutment placement
  • Anti-rotational scan cap assured by a notch at the base of the abutment
  • Circular platform of the Abutment fullfills the highest esthetic demands
  • Abutment cylinder height ensures a good cemented connection of the milled Zirconium structure
  • Available in different heights and angulations
  • 1.5° Conical Connection for stability and bacterial seal
  • Variable:
    Available in various gingival heights:
    (GH) 0.5 - 1.5 - 2.5 mm
    Available in various angulations
    0º - 10º - 20º
  • Torque Recommendations: 15 - 20 Ncm (2mm Platform)



Picture Item # Description Angulation Gingival Height (MM)

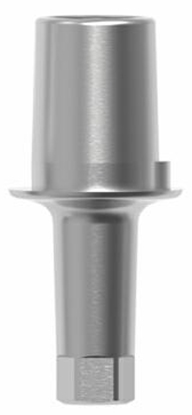

Picture of KSA400005.H/2Pro KSA400005.H/2Pro

4.0 x 0.5mm 0° Glue/Scan Abutment with 2mm Post Hex

0.5

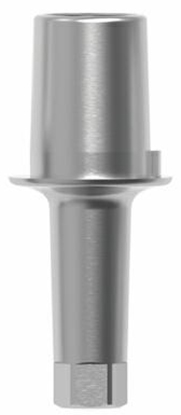

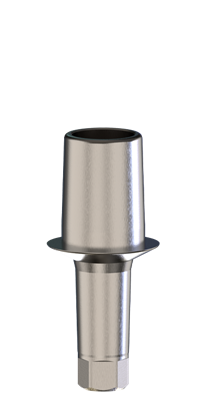

Picture of KSA400015.H/2Pro KSA400015.H/2Pro

4.0 x 1.5mm 0° Glue/Scan Abutment with 2mm Post Hex

1.5

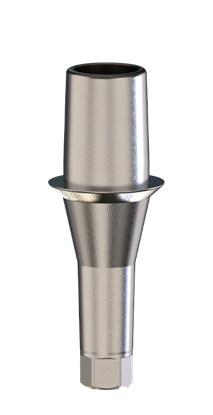

Picture of KSA400025.H/2Pro KSA400025.H/2Pro

4.0 x 2.5mm 0° Glue/Scan Abutment with 2mm Post Hex

2.5
Picture of KSA401005.H/2Pro KSA401005.H/2Pro

4.0 x 0.5mm 10° Glue/Scan Abutment with 2mm Post Hex

10° 0.5

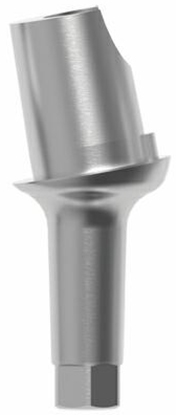

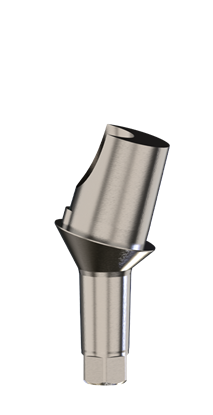

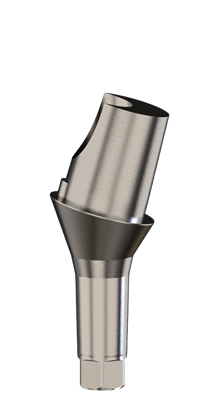

Picture of KSA401015.H/2Pro KSA401015.H/2Pro

4.0 x 1.5mm 10° Glue/Scan Abutment with 2mm Post Hex

10° 1.5

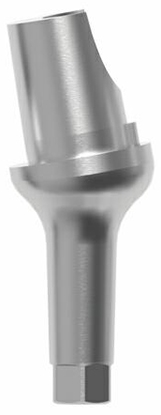

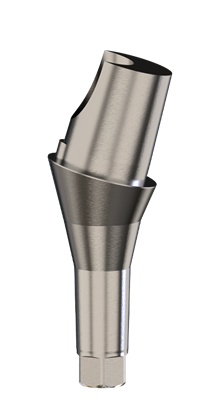

Picture of KSA401025.H/2Pro KSA401025.H/2Pro

4.0 x 2.5mm 10° Glue/Scan Abutment with 2mm Post Hex

10° 2.5

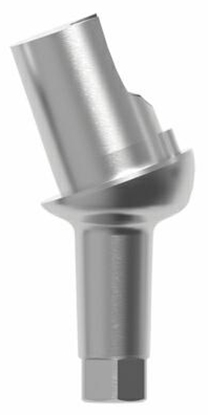

Picture of KSA402005.H/2Pro KSA402005.H/2Pro

4.0 x 0.5mm 20° Glue/Scan Abutment with 2mm Post Hex

20° 0.5

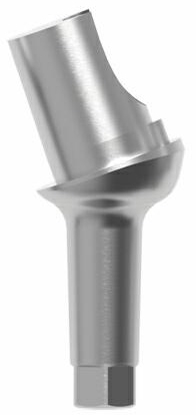

Picture of KSA402015.H/2Pro KSA402015.H/2Pro

4.0 x 1.5mm 20° Glue/Scan Abutment with 2mm Post Hex

20° 1.5

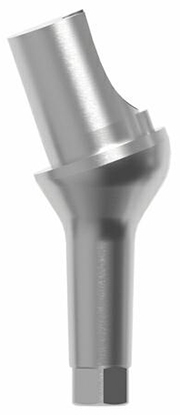

Picture of KSA402025.H/2Pro KSA402025.H/2Pro

4.0 x 2.5mm 20° Glue/Scan Abutment with 2mm Post Hex

20° 2.5

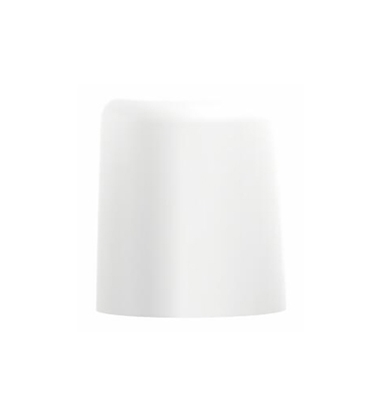

Picture of KSA_K4.0 KSA_K4.0

POM Cap for Glue/Scan Abutments 4.0mm/2mm Post

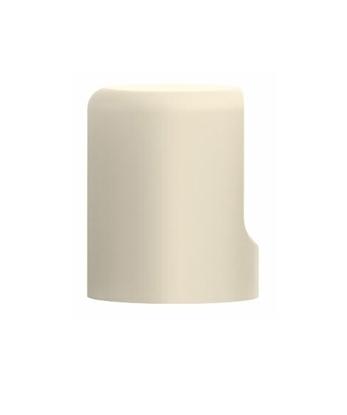

Picture of KSA_PT4.0 KSA_PT4.0

Peek Cap for Glue/Scan Abutments 4.0mm/2mm Post

Picture of ETS.K3Pro/2.Set ETS.K3Pro/2.Set

K3 Pro Screw 2mm, Set of 2
